FX301B-03

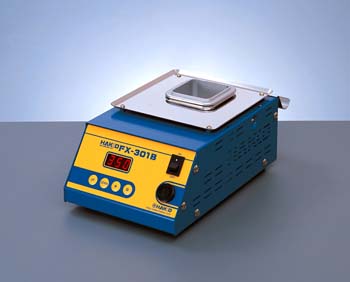

FX-301B Digital Solder Pot

The Hakko FX-301B digital Lead-Free compatible, high performance soldering pot features:

• Four (4) different heating programs for optimum temperature settings for Sn-Pb (Tin/Lead), Sn-Ag-Cu (Tin/Silver/Copper), Sn-Cu (Tin/Copper) or Sn (Tin) solder

• Temperature control

• Ceramic heating element

• Digital temperature display

• Easy pot replacement

• Two different Extended Life Crucibles - 50 mm square and 75 mm square
(use the two pots for different solder compositions or use the different pot sizes with the same unit)

• Convenient timer for monitoring use and making it easy to judge when to replace the pot

• Digital display reads °C or °F

NOTE:
50 x 50 mm square Extended Life Crucible is included with the unit
75 x 75 mm square Extended Life Crucible is an optional part

FX-301B SOLDER POT Model Name FX-301B Power Consumption 290W  (120V) Temperature Accuracy ±10°C (±18°F) Temperature Stability ±5°C (±9°F) Weight (w/o solder and cord) 1.7 kg  (3.74 lb.) Outer dimensions 143(W) x 100(H) x 220(D) mm (5.6 x 4.0 x 6.7 in.) EXTENDED LIFE CRUCIBLES   50 x 50 mm Square 75 x 75 mm Square Temperature range 200-450°C (400-840°F) 200-380°C (400-720°F) Solder pot dimensions 50(W)x50(D)x43.5(H) mm 2.0(W)x2.0(D)x1.7(H) in. 75(W)x75(D)x52.5(H) mm 3.0(W)x3.0(D)x2.1(H) in. Molten solder capacity 0.85 kg  (1.87 lb.) 1.2 kg  (2.64 lb.) CONTENTS Part Number   FX301B-03 Unit (50 x 50 mm Extended Life Crucible included) B2932 Spatula B2919 J-shaped waste collector B1417 Hexagon wrench   APPROVED   NOTE:    50 x 50 mm square Extended Life Crucible is included with the unit 75 x 75 mm square Extended Life Crucible is an optional part Specifications and design subject to change without notice. Temperature accuracy and stability specifications are established at idle with a full 50 x 50mm crucible.
