FT801-02
FT801-02 WIRE STRIPPER, THERMAL, DIGITAL, w/o BLADE, FT-801
In Stock: 1
Price: Request Quote
Add to order/quote

FT801-02



Thermal Wire Stripper

  • Compact station minimizes bench space
  • Digital power control from 5% to 100% (in increments of 5%)
  • Digital power setting display
  • Locking process control allows a set max power limit or full lock with no adjustment allowed
  • 3-digit password security eliminates the need for a key card
  • Extra long, flexible cord for a long reach
  • Redesigned ergonomic hand piece
  • New wire stop with improved performance and durability
  • New blades offer improved blade life
  • Easy insertion and removal of blades
  • New blade removal tool safely removes blades from hand piece
  • Optional extension cord (B3659) allows a maximum reach of 2.5 m (8.2 ft)
  • New holder design with safety protective cover
  • FOD tray mitigates debris on the work bench
  • Auto Power Off
  • Sleep mode functionality
  • Hand piece is compatible with older version G1 blades
  • ESD Safe
  • NOTE:Blades are NOT included. Blades must be purchased separately.

    Part Number: FT801-02



    SPECIFICATIONS

    • Station

    Model Name
    FT-801
    Part Number
    FT801-02
    Power Consumption
    68W / 120VAC
    Temperature Range
    200°C - 800°C
    (392°F - 1472°F)
    Dimensions
    80(w) x 130(h) x 131(d) mm
    3.1 (w) x 5.1 (h) x 5.2(d) inch
    Weight (station)
    1.32 kg (2.9 lb.)
    Weight (shipping)
    2.66 kg (5.9 lb.)
    ESD Safe
    Yes
    Safety Approved

    • Hand Piece

    Model
    FT-8002
    Part Number
    FT8002-01
    Power Consumption
    64W / 120VAC
    Length (w/o cord)
    136 mm (5.4 in.)
    Weight (w/ blade)
    90 g (0.2 lb.)
    Reach
    1.3 m (4.3 ft.)
    Blade
    Replaceable

    • Wire Stripper Blade

    Part NumberDescription
    G2-1601Straight
    G2-1602AWG 18-24
    G2-1603AWG 26-33

    For diagram of the blades, click on the Tips/Nozzles tab above.


    NOTE:
    Blades are NOT included with station. Blades must be purchased separately.

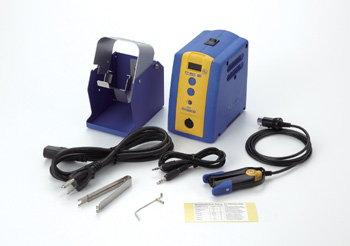

    CONTENTS

    Part Number
    Part Name
    N/A
    FT-801 station
    FT8002-01
    Hand piece
    B3644
    Wire Stop
    B3648
    Blade Removal Tool
    C1573
    Hand piece holder
    Connector Cable
    B3253
    Power Cord
    B2419
