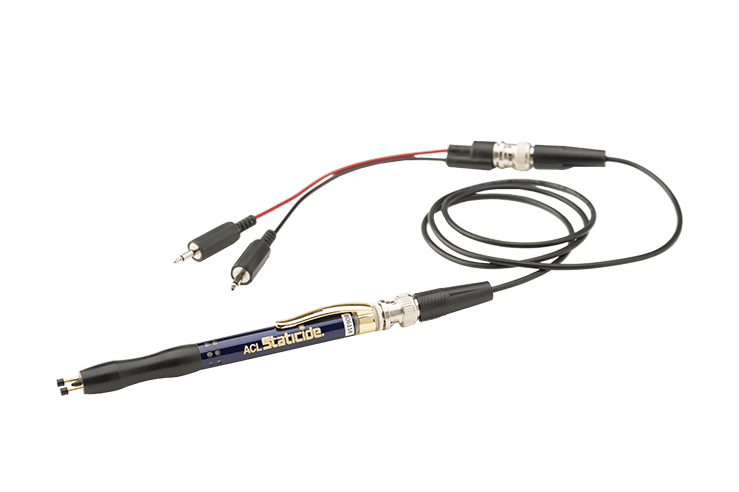

ACL Staticide® 806 Dual Point Pen Probe with Cables

ACL Staticide® 806 Dual Point Pen Probe with Cables

Measure point-to-point resistance in hard-to-reach areas

The ACL Staticide® 806 Dual Point Pen Probe is a precision instrument for measuring resistance between two points (RTT). Its small size is ideal for measurements where 5-lb probes don’t fit. The portability and comfortable ergonomic design allows the user to audit specimens in the field and laboratory without sacrificing accuracy. This device uses spring loaded electrodes with conductive rubber boots to ensure superior contact with hard and irregular surfaces. The pogo-pin type ATE-quality probes are made of beryllium copper with minimum 60 micro-inch hard gold. Using a thin line BNC coaxial cable with inner source and outer sense connections minimizes reading errors due to electrostatic interference. The BNC to stereo jack adapter is compatible with all ACL Staticide® resistivity meters, including the ACL Staticide® 880 Megohmmeter.

• Measures areas 0.32 inches (8.2mm) diameter
• Spring loaded electrodes with conductive rubber boots
• Conforms to ANSI/ESD STM11.13-2006
• Compatible with all ACL resistance meters
• Use for resistance testing in small specimens, parts, and hard to reach places
• Made in the USA
