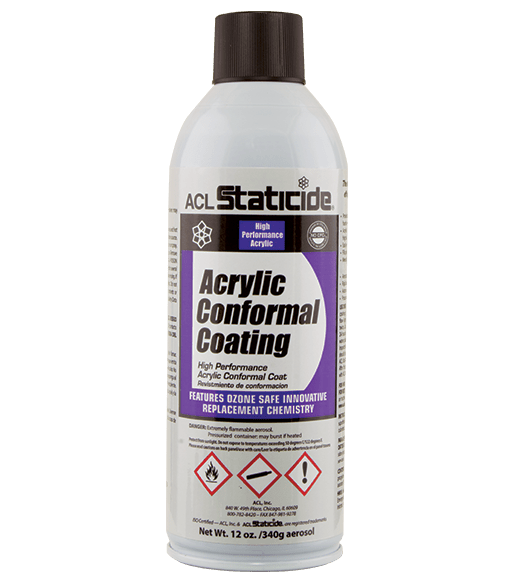

ACL Staticide® 8690 Acrylic Conformal Coating, 12 oz / 340 g Aerosol Can

ACL Staticide® 8690 Acrylic Conformal Coating, 12 oz / 340 g Aerosol Can

Insulation Against Electrical Shorts and Arcing

Staticide® 8690 Acrylic Conformal Coating provides excellent electrical insulation against high-voltage arcing and corona shorts, protecting printed circuit boards, components, and flex circuitry from damage. This fast-drying formula is a highly effective, durable acrylic barrier against environmental elements in both hot and cold operating environments, including heat generated by electronic circuitry. This tough, transparent coating will not fragment, chip, or crack, and provides exceptional insulation and acid resistance. Self-healing properties provide protection against nicks and scratches after curing. Formula is ready-to-use, there is no mixing required.

• Operating temperature from -75°F/-59°C to 270°F/132°C
• Dielectric breakdown: 1100 volts/mil
• Meets MIL-I-46058C, Type AR
• Compliant to IPC-CC-830B with Amendment 1
• No ozone-depleting substances
• Designed to provide effective insulation against electrical shorts and harsh environments
• Provides excellent acid resistance
• Self-healing; easily repairable
• Contains UV indicator for easy quality control
• UL 746E certified, RoHS compliant
