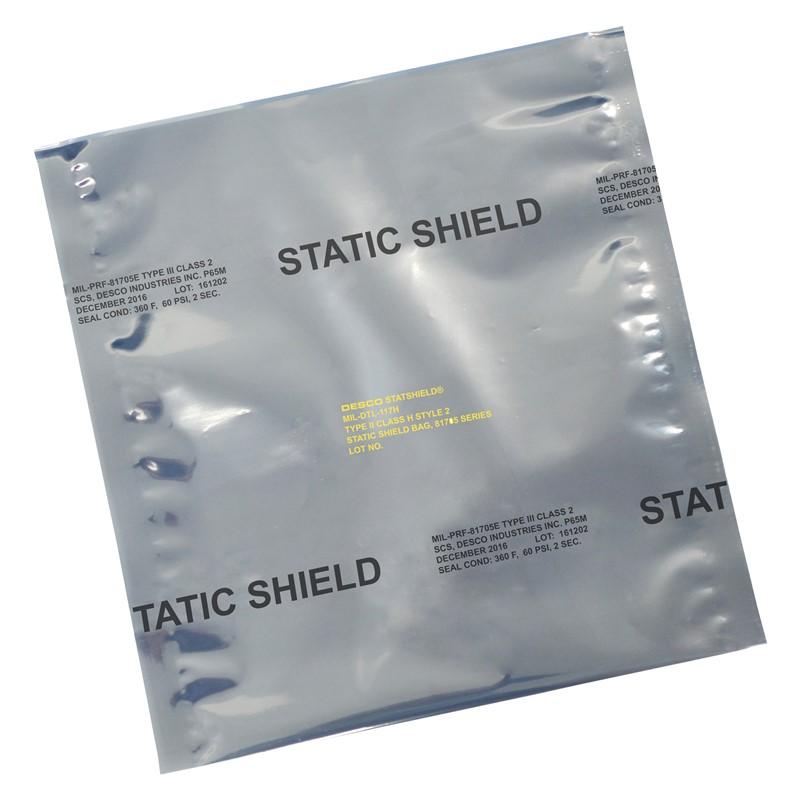

Desco 12914 Static Shielding Bags, 8 inX8 in, 81705 Series, Metal-In, 100/Pk

• MIL-PRF-81705E Type III, Class 2 Qualified Film Laminate (0.0028”)
  Listed on the qualified products list (QPL) Defense Standardization Program for electrostatic discharge (ESD) protective materials. View .


• Converted per MIL-DTL-117H
  Constructed and marked per requirements for heat-sealable bags used in military preservation.


• Material Identification Printed Between Polyester and Aluminum Shielding Layer
  Prevents markings from rubbing or sloughing off.


• <10 nJ Energy Limit Test per MIL-PRF-81705E Method 4.6.9
  Meets requirements¹ for ESD shielding packaging inside and outside an ESD Protected Area (EPA).


• Dissipative Outer Surfaces Rtt <1 x 10¹² ohms per MIL-PRF-81705E Method 4.6.8
  Allows bag to be used throughout an ESD Protected Area and grounded when placed on a grounded surface or handled by a grounded operator.


• Dissipative Inner Surface Rtt ≥ 1 x 10⁵ to <1 x 10¹² ohms per ANSI/ESD STM11.11
  Allows bag to be used with ESD susceptible items.


• Lead-free RoHS compliant


• Made in the United States of America

Specifications:

• Bag dimensions: 8" x 8"


• MIL-PRF-81705E Type III, Class 2 Qualified Film Laminate (0.0028”)


• Converted per MIL-DTL-117H


• Dissipative Outer Surfaces Rtt <1 x 1012 ohms per MIL-PRF-81705E Method 4.6.8


• Dissipative Inner Surface Rtt ≥ 1 x 105 to <1 x 1012 ohms per ANSI/ESD STM11.11


• <10 nJ Energy Limit Test per MIL-PRF-81705E Method 4.6.9

Meets the ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging
