Single Workstation Continuous Monitor Continuously monitors the path-to-ground integrity of one operator and one ESD worksurface
NEWPark Delay Timer and ParkSnap™ Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm

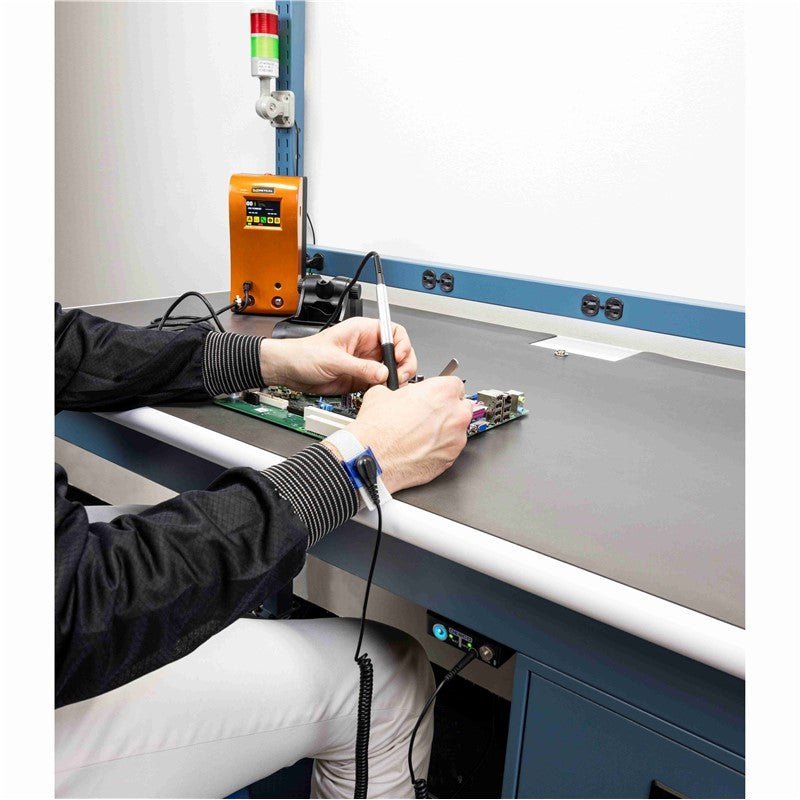

NEWLight Tower Compatibility Connects with the 19332 Light Tower accessory
Wave Distortion Technology Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground* and the presence of its 1 megohm safety resistor
Mat Monitor Switch Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
Audible Alarm Adjustment Sets the audible alarm volume from loud to louder

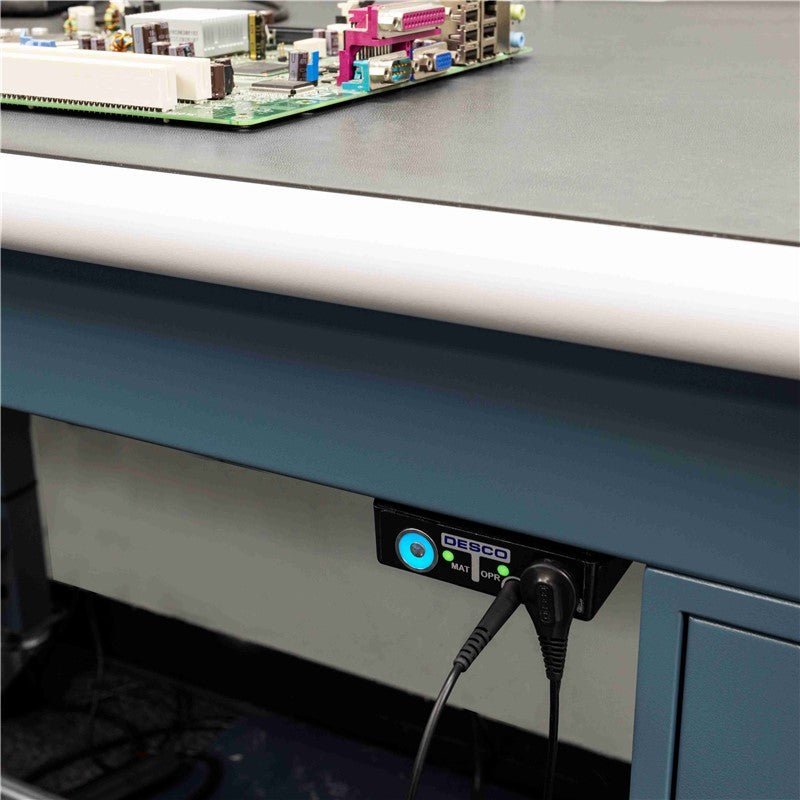

Enclosure with Mounting Tabs Installs in workbench and equipment environments
Single-Wire Impedance Design Meets ANSI/ESD S20.20 in accordance with ESD TR1.0-01-0
1.2 Volt Operator Test Voltage Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
<50 Millisecond Alarm Response Time Identifies failures and intermittencies
to check the test limits of Wave Distortion Monitors without removing them from their workstations
NIST Calibrated – Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of Desco products, see Calibration.

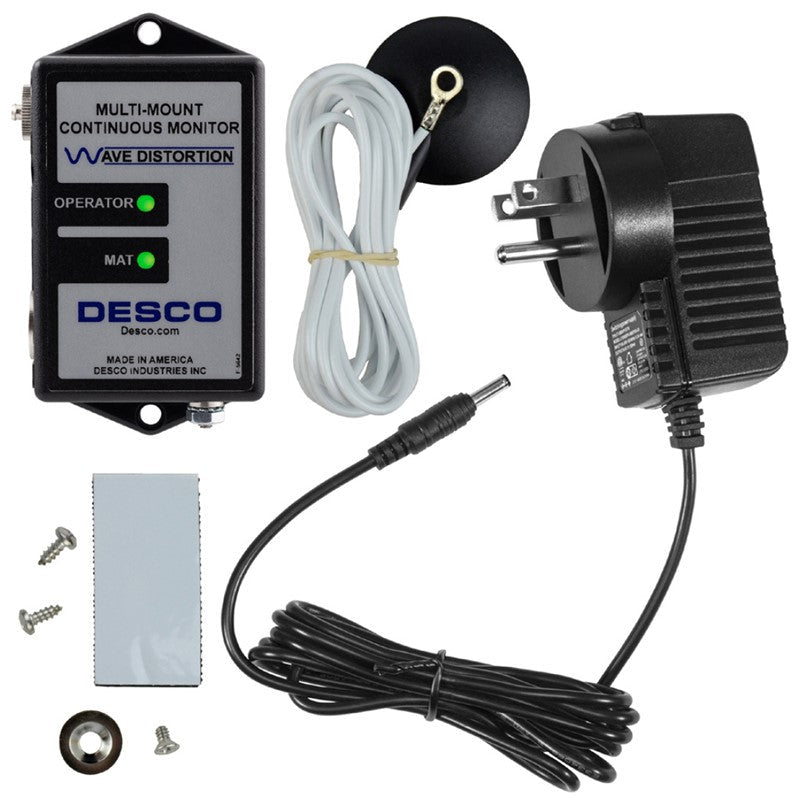

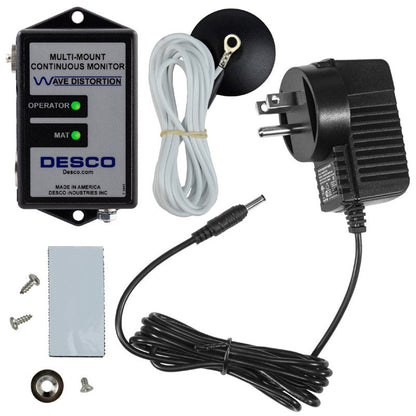

100-240VAC Power Adapter with IEC C14 Style Inlet Connects to a power cord with a IEC C13 outlet connector
Made in the United States of America This item is made and stocked in Chino, CA
*The ESDA Wrist Strap standard is ANSI/ESD S1.1. The Wrist Strap System required limit per ANSI/ESD S20.20 Table 3 is 0.8 to 1.2 x 106 ohms with product qualification testing per ANSI/ESD S1.1. The test range of the monitored circuit is 500 kilohms to 10 megohms.
