Hakko FM2024-21 FM-2024 Desoldering Module Kit

Hakko FM-2024 Desoldering Module Kit

SKU: FM2024-21

CK,DSDRG,w/FH-200 & DCB,w/o NOZZLE,FM-2024
The Hakko FM-2024 desoldering module gives you a complete soldering and desoldering solution in one module. The configurable handpiece uses quick-change composite nozzles and allows you to choose either a gun or pencil style handpiece.
Note: The FM-2024 requires the FM-203 Dual-Port Soldering/Desoldering system to function.

FM-2024 DESOLDERING MODULE
The Hakko FM-2024 Desoldering Module extends the versatility of the award winning Hakko FM-202 or the new FM-203 Soldering Station giving you a complete soldering and desoldering solution, in one modular station.NOZZLE/TIP HEATER CARTRIDGEBuilding on Hakko's revolutionary composite tip technology, the desoldering nozzle/tip heater cartridge assembly offers a one-step, quick-change design with fast thermal recovery; the enlarged throat and shortened nozzle design is virtually non-cloggable, making it ideal for NO LEAD applications; and its slender body enables it to reach those difficult-to-reach component pads on densely populated boards.
GUN TO PENCIL CONFIGURATIONThe Hakko FM-2024 also features an extremely lightweight, reconfigurable handpiece that allows the user the option to use the tool as either a gun or pencil style handpiece by simply removing or adding the Handle.





Gun Configurationwith Handle
Pencil Configurationwithout Handle

DISPOSABLE FILTERThe disposable filter pipe is safe and easy-to-remove.
DESOLDERING CONTROL MODULEThe Desoldering Control Module fits neatly underneath the Hakko FM-203, Hakko FM-202 or Hakko FP-102 to conserve valuable bench space so no working space is lost to equipment and all components of the module are ESD safe by design.
Note: Compressed air is NOT self-contained in the FM-203, FM-202 or FP-102 stations • the Desoldering Control Module is required to operate the desoldering gun/pencil • the Desoldering Control Module also requires shop/compressed air
IMPORTANT: (1) In order to operate the FM-2024 with the FM-202 station, the FM-202 must have software version 7.0 or greater. As this item is now discontinued an alternative solution is the FM-203 which gives you soldering and desoldering all in one unit.(2) The FM-2024 will operate with any FP-102 station.

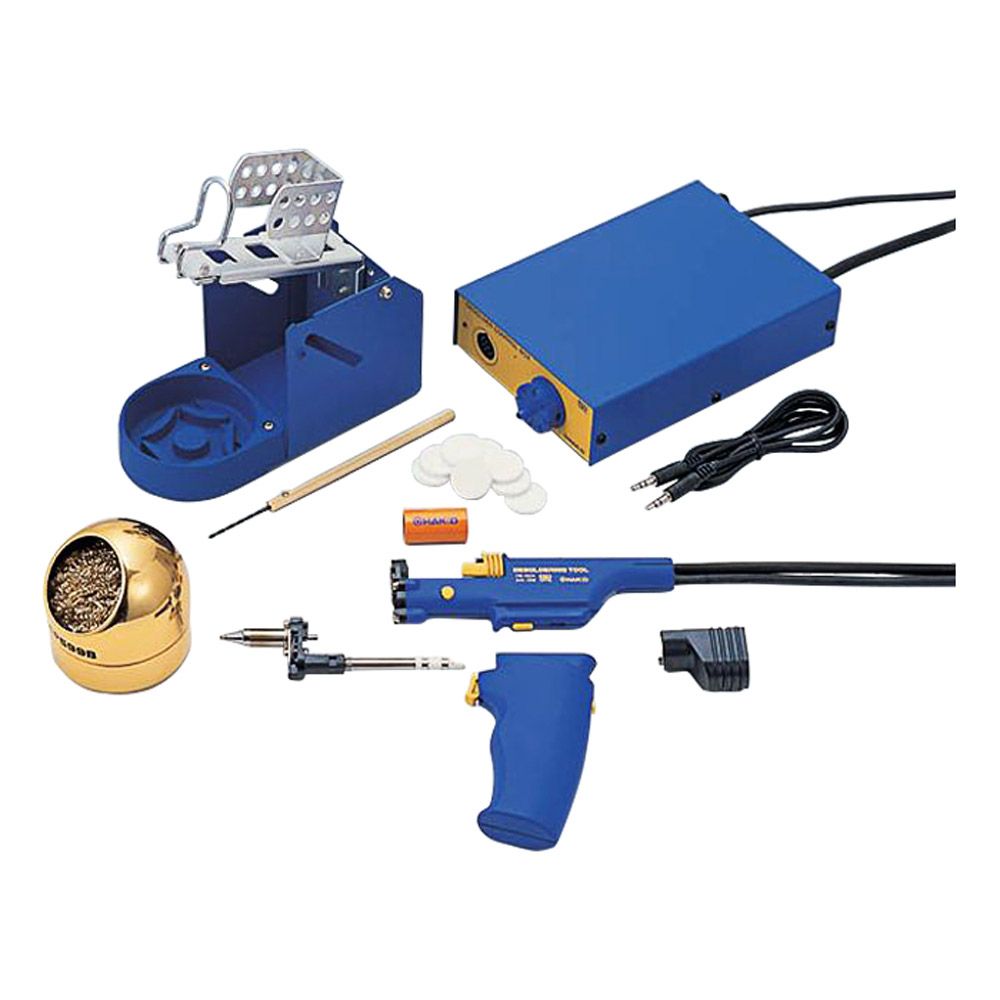

The Hakko FM-2024 Desoldering Module includes:1 Desoldering Handpiece (PN: FM2024-02)1 Desoldering Control Module (PN: C1492)1 Desoldering Handpiece Grip (PN: B2872 for Gun Style Configuration)1 Handpiece Holder (PN: FH200-05 - Includes Hakko 599B Tip Cleaner)1 Nozzle Remover (PN: B2876)1 Cleaning Drill (PN: B2873)1 Sleep Mode Cord (PN: B3253)1 Filter Pipe (PN: A1511)
NOTE:  Nozzles are NOT included.  (See Nozzles and Accessories)
