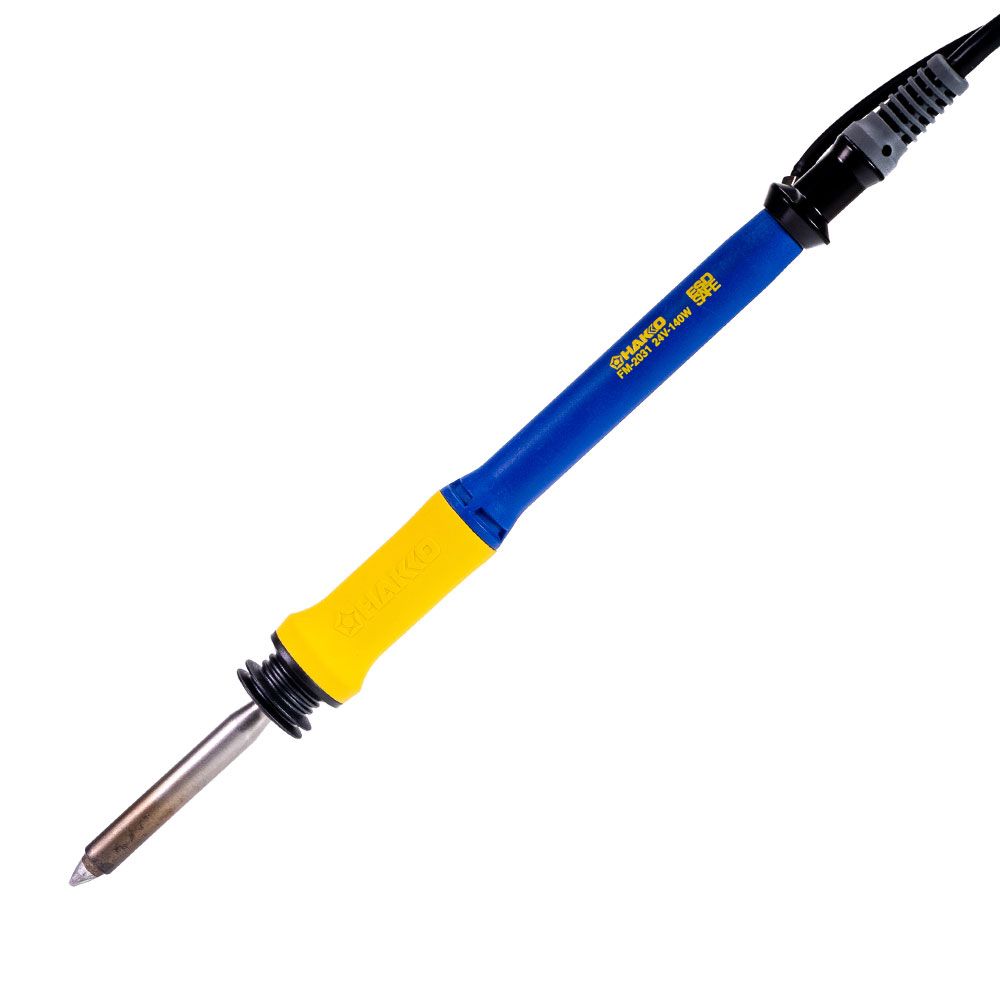

Hakko FM2031-01 FM-2031 Nitrogen Heavy Duty Soldering Iron Handpiece Only

Hakko FM-2031 Nitrogen Heavy Duty Soldering Iron Handpiece Only

SKU: FM2031-01

The Hakko FM2031-01 Nitrogen compatible handpiece can be attached to the FM203 “D” port and the Hakko FM-206 CH2 or CH3 ports.

NITROGEN COMPATIBLE HEAVY DUTY SOLDERING IRON
The Hakko FM-2031 Nitrogen Compabitle Soldering Iron provides a higher mass tip with double the power of conventional T17 tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications.

• uses T22 tips (not included) • compatible with the Hakko FM-203 soldering station and FM-206 rework system

IMPORTANT. PLEASE READ: The FM-2031 can only be attached to the Hakko FM-203 "D" port, and the Hakko FM-206 CH2 or CH3 ports. If you attach the iron to any other port, a grip error or connector error (C-E) will occur.
Note: This is the Handpiece ONLY. For the complete kit, including holder, etc., see PN: FM2031-02
Note: Nozzle Assembly Required when using nitrogen Nozzle assemblies are required in order to properly envelop the tip when using nitrogen. Nozzle assemblies are made to fit specific shape tips. Please choose the approprate nozzle assembly for your tip selection based on the chart below.

Tip P/N
Nozzle Assy P/N
Nozzle Assy


T22-BL
B3121
Nozzle Assy A


T22-BL2


T22-BC2


T22-C3


T22-D12


T22-J02


T22-D08
B3123
Nozzle Assy C


T22-D16


T22-K


T22-C5
B3124
Nozzle Assy D


T22-C6


T22-D32


T22-D45


T22-D52


T22-D24
B3561
Nozzle Assy E


T22-JD08
