Hakko FM2031-KIT FM-2031 Nitrogen Heavy Duty Soldering System Kit

Hakko FM-2031 Nitrogen Heavy Duty Soldering System Kit

SKU: FM2031-KIT

KIT,FM2031-02 + FX791-01

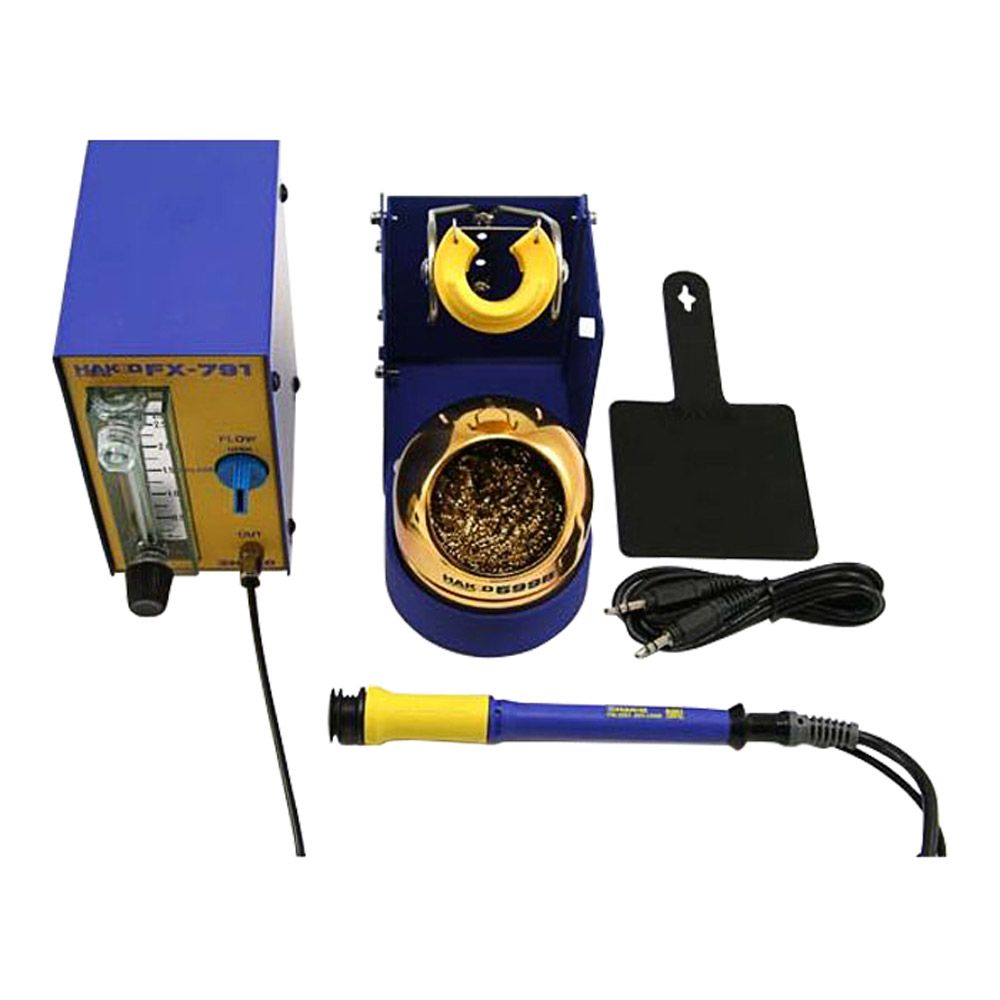

This kit includes the Hakko FM2031-02 handpiece and the FX-791 N2 station controller. This kit is the ideal solution for all your lead-free hand-soldering applications.

NITROGEN COMPATIBLE HEAVY DUTY SOLDERING IRON KIT
The Hakko FM-2031 Nitrogen Compatible Soldering Iron provides a higher mass tip with double the power of conventional T17 tips. This iron is ideal for soldering difficult-to-solder heavy ground planes and/or high heat sink applications.

• uses T22 tips (not included)
• compatible with the Hakko FM-203 soldering station and FM-206 rework system

IMPORTANT. PLEASE READ: The FM-2031 can only be attached to the Hakko FM-203 "D" port, and the Hakko FM-206 CH2 or CH3 ports. If you attach the iron to any other port, a grip error or connector error (C-E) will occur.

Note: The FM-203 stations with serial numbers before 02203211002129 will require the purchase of an upgrade. Due to the upgrade process requirements, upgrades cannot be performed in the field. Stations must be returned to American Hakko under a CASE for this upgrade, at which time the upgrade (PN: FM203-UPGR) can be purchased with the FM2031-KIT and your selection of T22 tips.

Nozzle Assembly Required when using nitrogen
Nozzle assemblies are required in order to properly envelop the tip when using nitrogen. Nozzle assemblies are made to fit specific shape tips. Please choose the approprate nozzle assembly for your tip selection based on the chart below.


Tip P/N
Nozzle Assy P/N
Nozzle Assy


T22-BL
B3121
Nozzle Assy A


T22-BL2


T22-BC2


T22-C3


T22-D12


T22-J02


T22-D08
B3123
Nozzle Assy C


T22-D16


T22-K


T22-C5
B3124
Nozzle Assy D


T22-C6


T22-D32


T22-D45


T22-D52


T22-D24
B3561
Nozzle Assy E


T22-JD08
