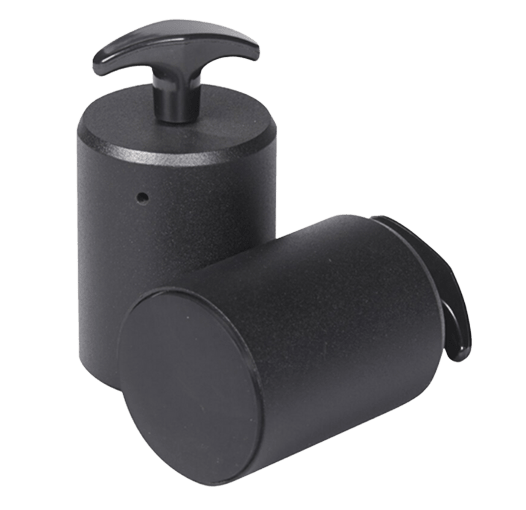

Staticide® 255 5-lb Resistance Probes probes are used with Statidice® megohmmeters for conducting point-to-point (RTT) and resistance-to-ground (RTG) tests. The cylindrical powder-coated 5-lb resistance are built in the USA according to criteria outlined in ANSI/ESD standards such as STM4.1, and STM7.1 and TR53. The conductive contact rubber pads allow the resistance between the two weights to be less than 1.0 x 10e3 ohms when measured on a metallic surface.
2.27 kg ± 2.5% (5 lb ± 2.5 %)
63.5 mm ± 5% (2.5 inches ± 5%) diameter
Conductive contact rubber uses Shore-A (IRHD) durometer hardness between 50 and 70.
